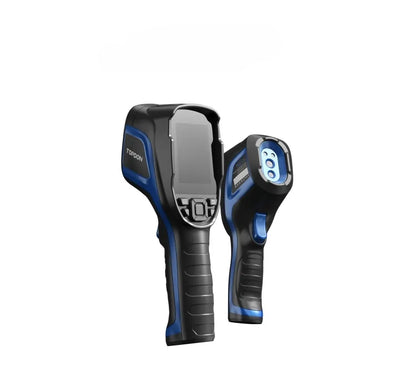

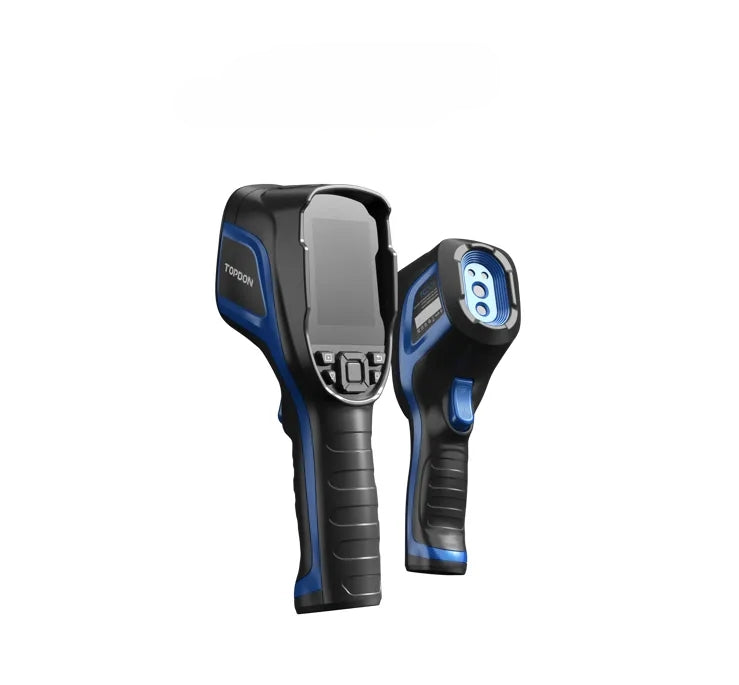

Topdon TC005 Infrared Thermographic Camera

Topdon TC005 Infrared Thermographic Camera

The TC005 is a handheld thermal camera capable of measuring a wide temperature range from -20 °C to 550 °C (-4 °F to 1022 °F) with up to 12 hours of runtime. Its 256×192 high-resolution infrared sensor delivers clear, detailed thermal images, eliminating blurry results.

The camera supports both standalone and PC modes, allowing images to be projected or uploaded for analysis. Additional features include seven Pseudo-Color Display options, a 2 MP visible light camera for overlay imaging, and picture-in-picture mode for enhanced diagnostics.

Features

• High Resolution & Thermal Sensitivity: 256×192 pixel infrared camera captures detailed images; thermal sensitivity of 0.05℃ detects tiny temperature differences.
• Temperature Range & Accuracy: Measures -20°C to 550°C (-4°F to +1022°F) with ±2°C accuracy; NETD <40mK, measurement resolution 0.1°C, error <2% for precise readings.
• Three Measurement Modes & Auto-Detection: Dot, Line, and Plane measurement modes for center, hot, and cold spots; auto-detection highlights temperature differences visually.
• Wide Field of View: 56° FOV captures more objects without adjusting focal length.
• Four Imaging Modes: Thermal Imaging, Dual Light, Visible Light, and Image-in-Image modes for versatile target identification.
• PC Image Analysis & Instant Projection: Save, analyze, and share thermal data on a PC; supports screen projection.
• Long Runtime: Integrated battery provides up to 12 hours of continuous use.
• Built-in Fill LED Light: Enables recording thermal readings without an external light source.
• Durable Design: IP54-rated for water and dust protection; drop-proof up to 2 meters for reliable field use.
• Additional Features: 2MP visible light camera for overlapping images, picture-in-picture mode, and seven pseudo-color display options for enhanced thermal visualization.
