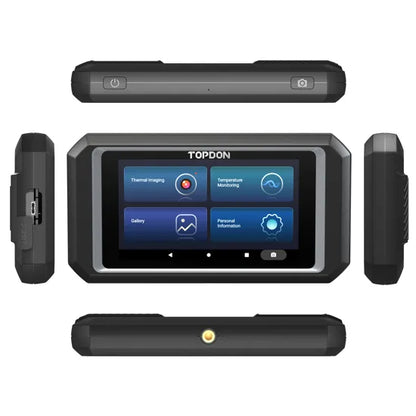

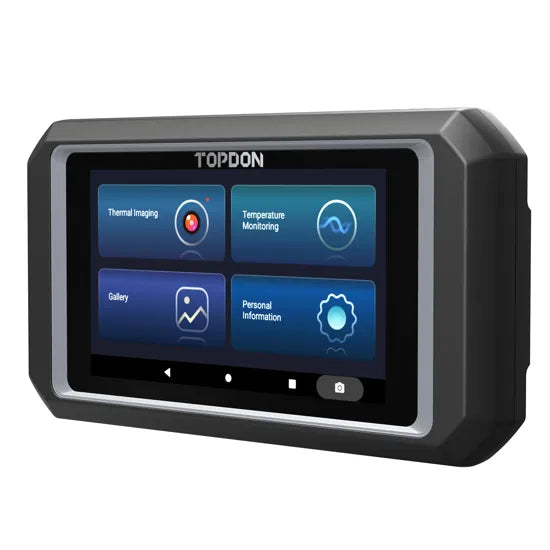

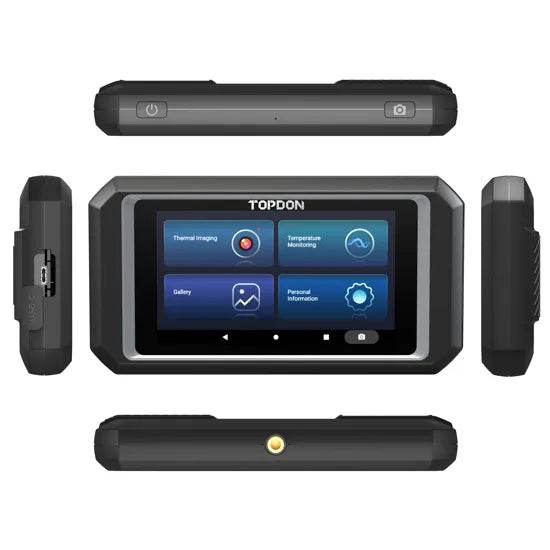

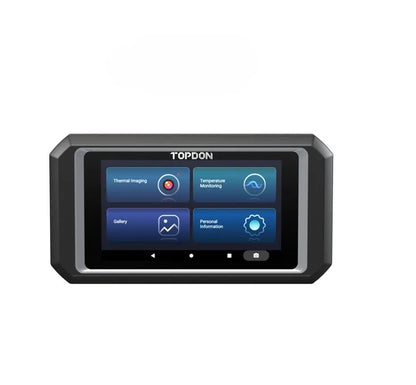

Topdon TC003 Infrared Thermographic Camera

Topdon TC003 Infrared Thermographic Camera

The TC003 is a high-resolution thermal camera offering 256×192 thermal imaging, exceptional temperature sensitivity (40 mK), and accuracy down to 0.1 °C. It features a 5-inch touchscreen, a 2 MP visible light camera for image overlay, and temperature waveform graphing for detailed analysis.

With OTG functionality, the TC003 can connect to an endoscope for specialized thermal inspections. Ideal for automotive maintenance, HVAC systems, and agricultural monitoring, it provides versatile, accurate thermal imaging for professional diagnostics and protection tasks.

Features

• Superior Image Quality: TC003 features a 256×192 IR resolution, delivering highly detailed thermal images, ideal for inspecting objects where surface temperatures are difficult to distinguish, such as circuit boards and electronics.
• High Accuracy Temperature Readings: Heat sensitivity of 40mk, measurement error ±2℃ or 2% of max temperature, and temperature resolution up to 0.1℃ for precise and reliable readings.
• Expanded OTG Functionality: Supports OTG devices such as endoscopes, oscilloscopes, and USB storage, expanding capabilities beyond thermal imaging.
• Optimized Testing Range: Measures temperatures from -4°F to +1022°F (-20°C to 550°C) suitable for diverse industrial, automotive, and refrigeration environments.
• Four Temperature Reading Modes: Dot, Line (highest/lowest), Square Plane (highest/lowest), and Full Camera View; up to 3 areas selectable per mode with pseudo color bar for easy hotspot identification.
• Four Imaging Modes & 11 Palettes: Infrared and visible light dual camera; imaging modes include visible light, thermal, thermal fusion (50% blend), and outline fusion. 11 color palettes allow full customization of temperature display.
• View Temperature Differences Easily: Set upper and lower limits with an intuitive color bar; black-and-white display highlights out-of-range temperatures. Image sharpness and contrast are adjustable for clearer hotspot detection.
• Advanced Secondary Analysis: Analyze saved thermal images in detail, including dot, line, and plane temperature readings for comprehensive thermal data insights.
• Monitor Temperature Change by Waveform Graph: Continuously measures and stores temperature data to generate waveform graphs, useful for detecting device overheating and monitoring trends over time.
• Durable & Resilient Design: Drop-resistant up to 2 meters, IP55 water and dust-resistant, with overcharge protection.
• Hardware Features: 5-inch 800×480 touch screen, low-light night vision lens, screw hole (1/4-20 UNC), landscape/portrait mode, built-in speaker and flashlight, screenshot and screen recording functions, projection of temperature readings.
• Unparalleled Accuracy with Temperature Correction: Adjust for ambient temperature, spot distance, and material emissivity with a built-in emissivity chart for precise readings.
• Windows Laptop Compatibility: TCView software enables connection to Windows laptops for extended testing areas, dimension selection, and access to 99 color palettes for customization.
