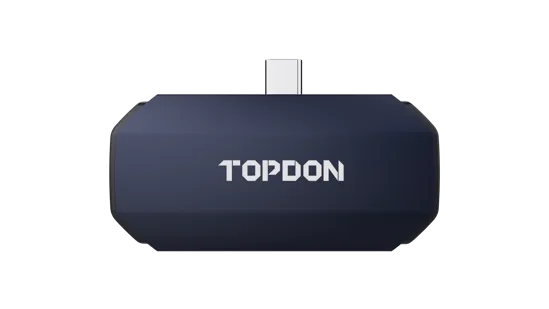

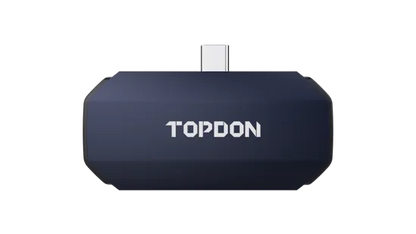

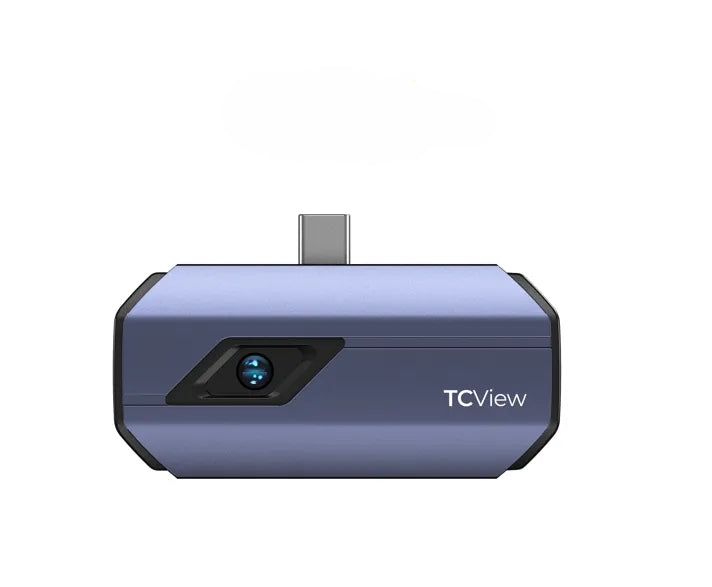

Topdon TC001 Infrared Thermographic Camera Android

Topdon TC001 Infrared Thermographic Camera – Android

The Topdon TC001 transforms your Android smartphone, tablet, or Windows laptop into a powerful thermal imaging camera. Simply connect via USB-C and use the accompanying app to access advanced thermal technology once reserved for specialists.

Ideal for home inspectors, HVAC technicians, electricians, automotive technicians, and farmers looking to monitor crops or livestock, the TC001 lets you see more than the human eye and detect heat patterns with precision.

Features

• Superior Image Quality: Equipped with a 256×192 pixel ultra-high IR camera, the TC001 produces thermal images with unmatched clarity, ideal for objects with barely distinguishable surface temperatures such as circuit boards and electronics.
• Built for Compatibility & Mobility: Compatible with Android phones/tablets via a downloadable app, and with Windows tablets through TCView. Lightweight at 30g and compact (71×42×14mm), making it highly portable.
• Optimised Temperature Range & Accuracy: Measures temperatures from -4℉ to 1022℉ (-20℃ to 550℃) with ±3.6℉ (2℃) or 2% max temperature accuracy, and 0.1℃ resolution for precise detection.
• Thermal Imaging App Features: Allows users to view temperature data, create real-time graphs, and set DIY temperature ranges with custom upper/lower limits and corresponding colors.
• Monitor Temperature Changes by Waveform Graph: Continuously records scene temperatures, providing high, low, and average values over time, generating waveform graphs for clearer analysis.
• Low Power Consumption: Powered via smartphone or tablet input, consuming only 0.35W, eliminating concerns about battery life during field use.
• Unique Image Enhancement Technology: Offers 10 color palettes, sharpness/contrast adjustment, picture-in-picture, and advanced image enhancement to improve clarity, detail, and target recognition.
• Wide Application Scenarios: Plug-and-play design with no registration required for temperature reading; ideal for security checks, insulation inspections, cylinder checks, water leak detection, and HVAC system inspection.
