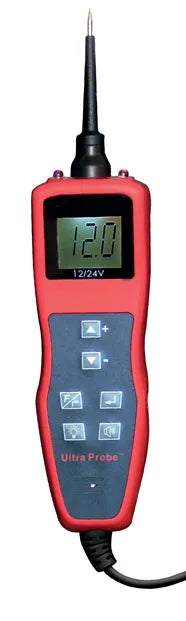

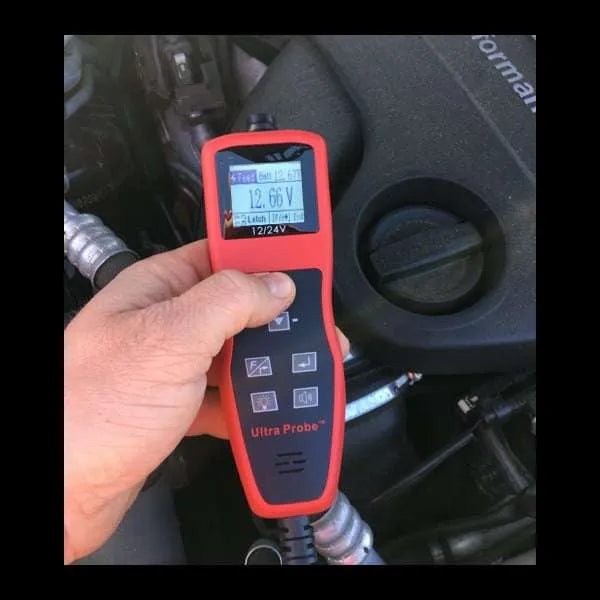

Prologics automotive ultra probe

The Prologics Ultra Probe is a comprehensive automotive testing tool that puts multiple testers in one handheld device. Perfect for professional technicians, it includes:

• Volt Meter – Measures DC/AC voltage quickly and accurately.
• Short Circuit Indicator – Detects and identifies shorts in circuits.
• Bad Ground Indicator – Checks for grounding issues in the vehicle’s electrical system.
• Continuity Tester – Tests wire and circuit continuity with ease.
• Relay Tester – Quickly tests automotive relays.
• Test Light – Verifies power presence and circuit integrity.
• 6M Power Cable – Provides flexibility and reach for testing in various locations.

A must-have tool for troubleshooting, diagnostics, and maintenance of automotive electrical systems.

Features

• Power Input: DC 12V or 24V battery
• DC Voltage Measurement Range: 0.00V to 70.00V max
• Resistance Measurement Range: 1Ω to 2kΩ (2,000Ω) max
• Frequency Measurement Range: 0Hz to 99,999Hz @ >2.0V (max)
• Peak-to-Peak Voltage Measurement: High Peak Volts, Low Peak Volts & Average (AC Ripples) with HOLD (Freeze) display
• Continuity to Ground: Within ±0.5V of input voltage supply
• Polarity Detection: Tip voltage indicated via RED or GREEN LED; tone sounds when continuity detected
• Power Feed Output Voltage: Depends on input battery (12V or 24V)
• Power Output Switching Modes: MOMENT, LATCH, PULSE
• Overload Protection: Probe will not power ON if connected in reverse

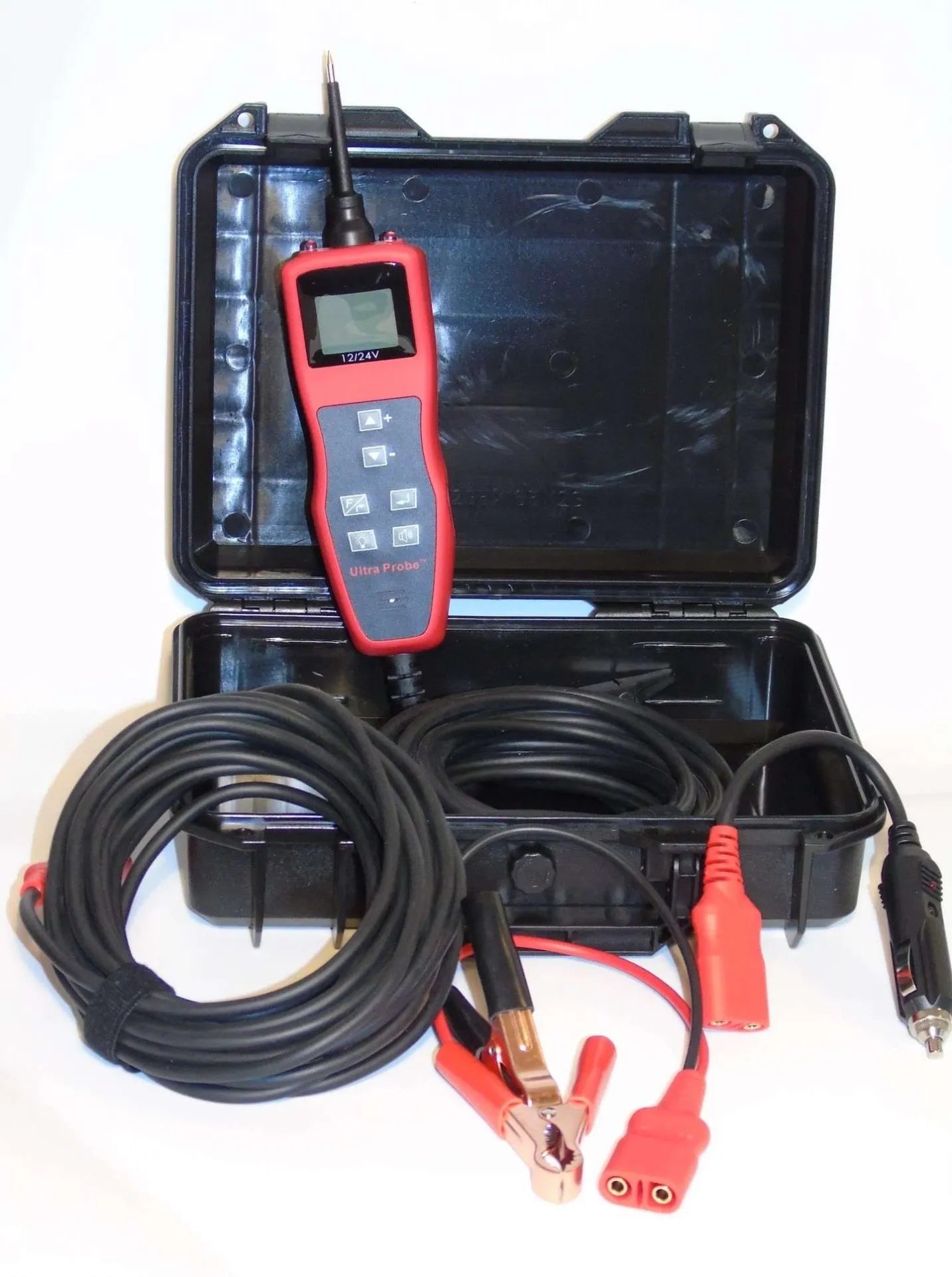

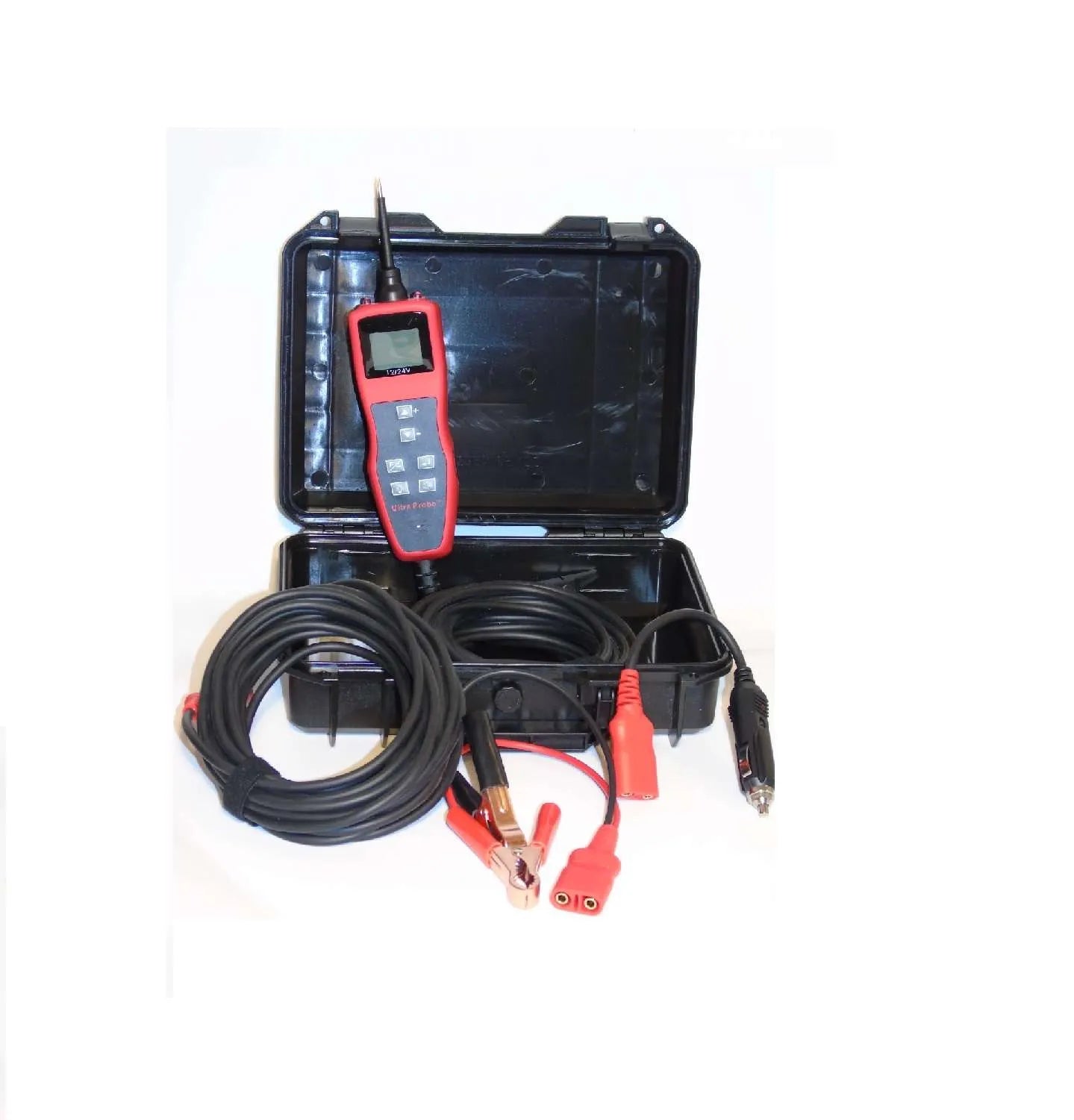

Kit Includes:

• Ultra Probe with 6m cable
• Extension cable 6m
• Cigarette adapter
• Tip
• Protective case
