Autel MaxiSYS Ultra diagnostic tool Best UK Support

Autel MaxiSYS Ultra diagnostic tool Best UK Support

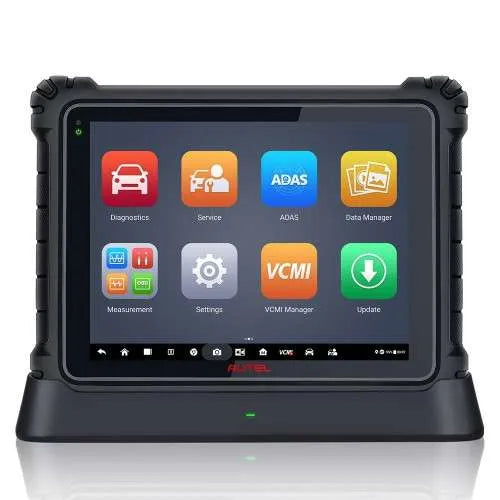

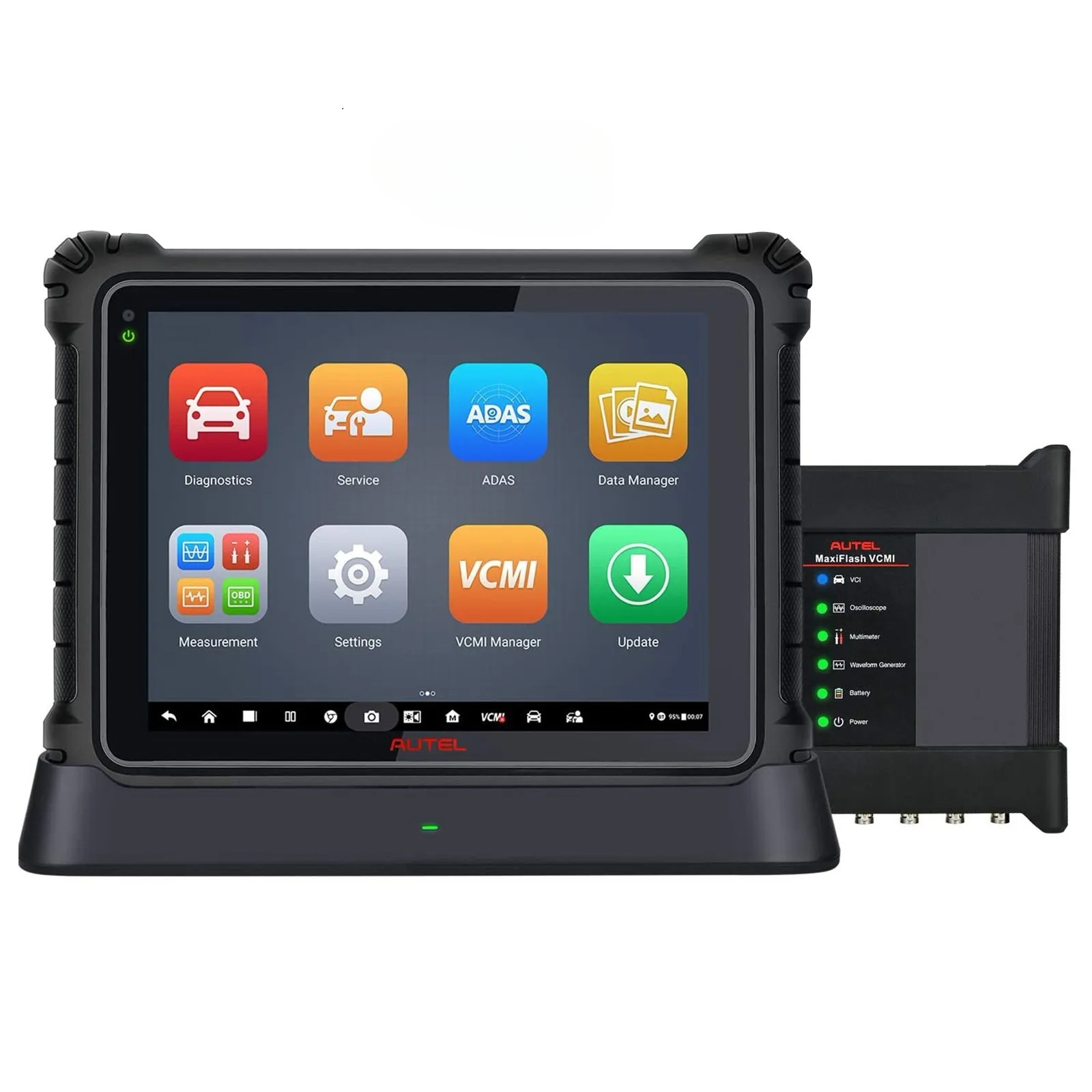

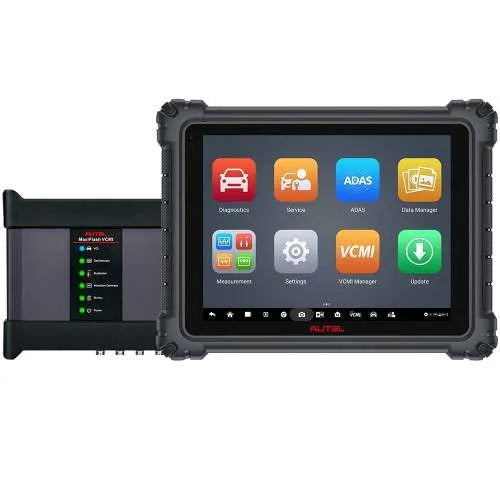

The MaxiSys Ultra is Autel’s most advanced diagnostic tablet, engineered to enhance technician efficiency and precision. Featuring a large 12.9-inch touchscreen with Android 7.0, it’s powered by an Octa-core processor (2.3GHz + 1.7GHz) and 256GB of internal memory. Its innovative split-screen design allows simultaneous multi-application use for seamless diagnostics and repair verification. The dynamic topology module mapping and improved AutoSCAN deliver intuitive, step-by-step repair guidance. The MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. A convenient docking station ensures continuous power and readiness for any diagnostic task.

Features

• Autel’s regular updates deliver the latest OE-level coverage for over 80 US Domestic, Asian, and European vehicles, including supercars.
• Provides complete OE-level functionality, covering full OBDII diagnostics, service functions, and advanced ECU coding and programming.
• Supports automatic system and software updates with real-time internet push notifications.
• Interactive Data Logging allows direct communication with Autel Support for fast troubleshooting of diagnostic issues.
• One-stop multitasking system designed for efficient workshop management, keeping files, customer details, and vehicle records organized.
• Cloud-based Data Manager securely stores customer information, vehicle data, scanner results, and technician notes.

Specifications

• Operating System: Android 7.0
• Processor: Samsung Exynos8895V Octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 256GB On-board Memory
• Display: 12.9-inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
• Connectivity: Wi-Fi×2 (802.11 a/b/g/n/ac 2×2 MIMO), Bluetooth v2.1 EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
• Camera: Rear 16MP Autofocus with Flashlight, Front 5MP
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio: Microphone, Dual Speakers, 3-Band 3.5mm Stereo/Standard Headset Jack
• Battery: 18000mAh 3.8V Lithium-Polymer Battery
• Charging: 12V AC/DC Power Supply (0°C–45°C)
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0°C–50°C (32°F–122°F)
• Storage Temperature: -20°C–60°C (-4°F–140°F)
• Dimensions (W×H×D): 366.5×280.9×34 mm (14.43″×11.06″×1.34″)
• Weight: 2.18kg (4.81 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
