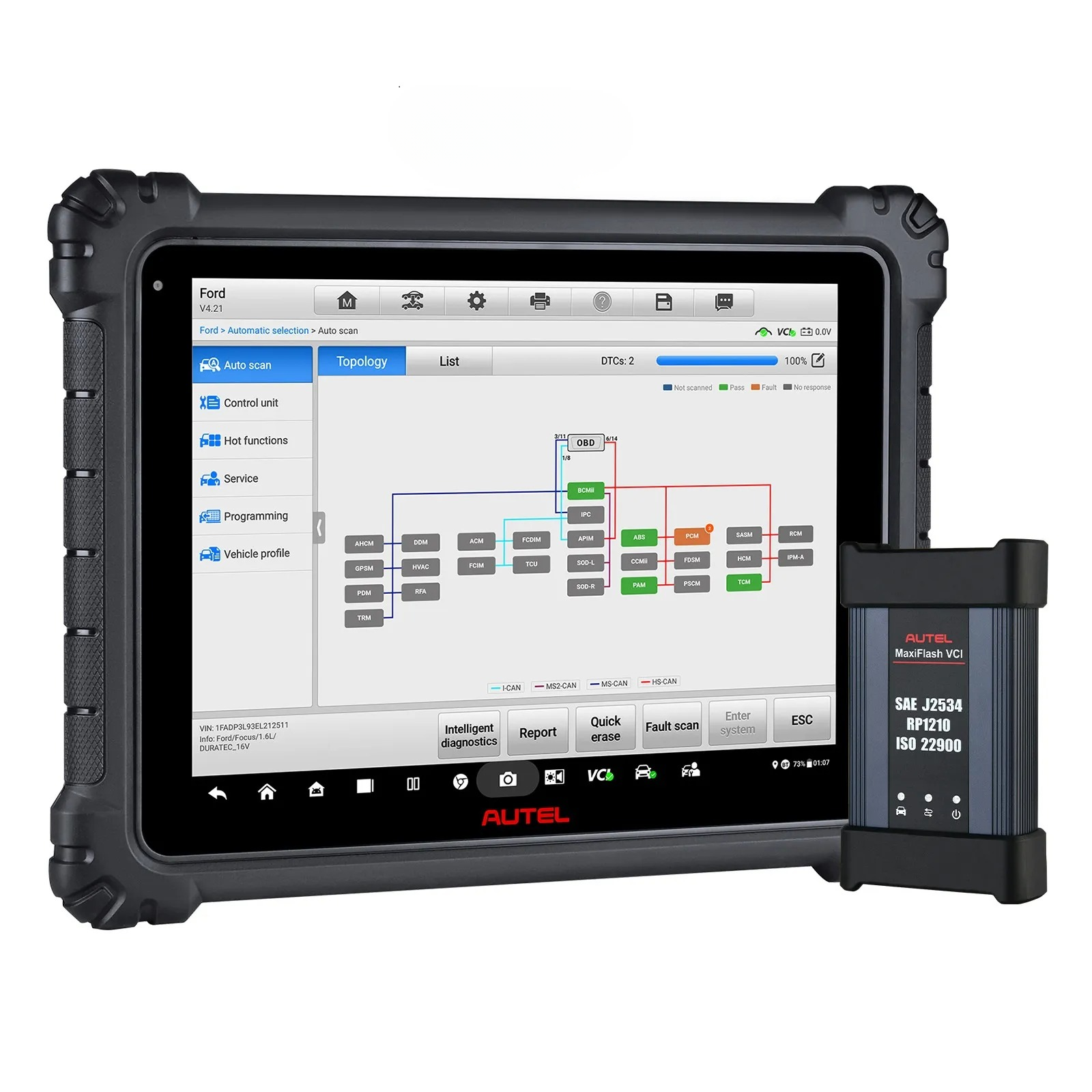

Autel MaxiCOM Ultra Lite 2 year version diagnostic tool Best UK Support

The Autel MaxiCOM Ultra Lite (2-Year Version) diagnostic tool offers advanced vehicle diagnostics with the best UK support and 2 years of subscription included—saving you around £500.

Featuring a 12.9-inch TFT-LCD touchscreen, this Android-based multi-platform solution includes a VCI communication unit and provides both on-tool and cloud-based repair guidance. With intelligent diagnostics, it delivers expert repair advice and detailed step-by-step instructions for accurate, efficient repairs.

Note: ADAS frame connection is not supported on this version.

Features

• Coverage: Latest OE-level updates for over 80 US Domestic, Asian, and European vehicles, including supercars
• Functionality: Exceptional OE-level performance from comprehensive OBDII diagnostics and services to advanced ECU coding and programming
• Updates: Automatic system and software updates with real-time push message notifications via internet
• Support: Interactive Data Logging sessions allow direct contact with Autel Support for troubleshooting diagnostic bugs and errors
• Workflow Management: One-stop multitasking for efficient management of workshop operations, keeping data files, customer info, and vehicle records organised
• Cloud Storage: Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes

Specifications

• Operating System: Android 7.0
• Processor: Samsung Exynos8895V Octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 256GB On-board Memory
• Display: 12.9-inch TFT-LCD with 2732 × 2048 resolution & capacitive touch screen
• Connectivity: Wi-Fi×2 (802.11 a/b/g/n/ac 2×2 MIMO), Bluetooth v2.1 EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
• Camera: Rear 16MP Autofocus with Flashlight, Front 5MP
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5mm Stereo/Standard Headset Jack
• Power and Battery: 18000mAh 3.8V Lithium-Polymer Battery
• Charging: Via 12V AC/DC Power Supply (0°C–45°C)
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0°C–50°C (32°F–122°F)
• Storage Temperature: -20°C–60°C (-4°F–140°F)
• Dimensions (W×H×D): 366.5mm × 280.9mm × 34mm (14.43″ × 11.06″ × 1.34″)
• Weight: 2.18kg (4.81 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
