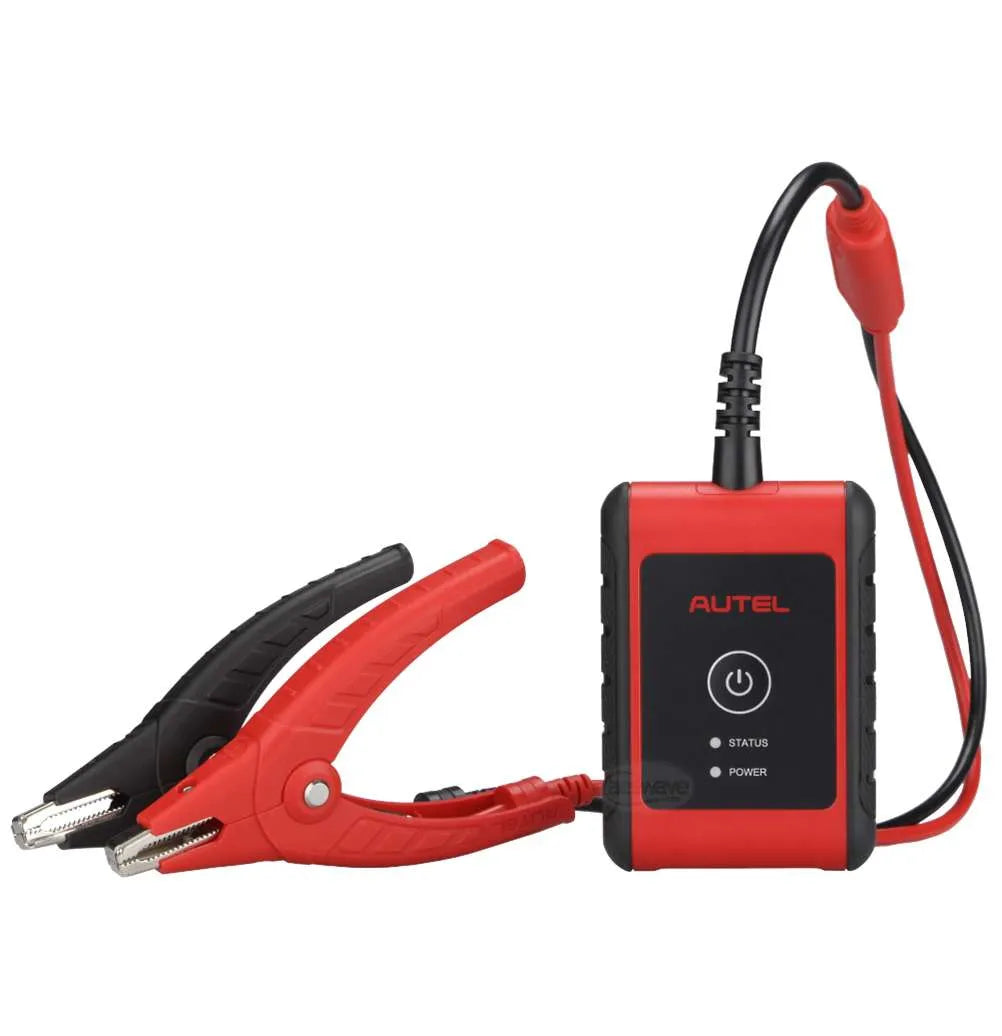

The Autel BT506 is a battery and electrical system analysis tool that uses Adaptive Conductance, an advanced method for accurately assessing a battery’s cold cranking ability and reserve capacity, providing a true measure of battery health.

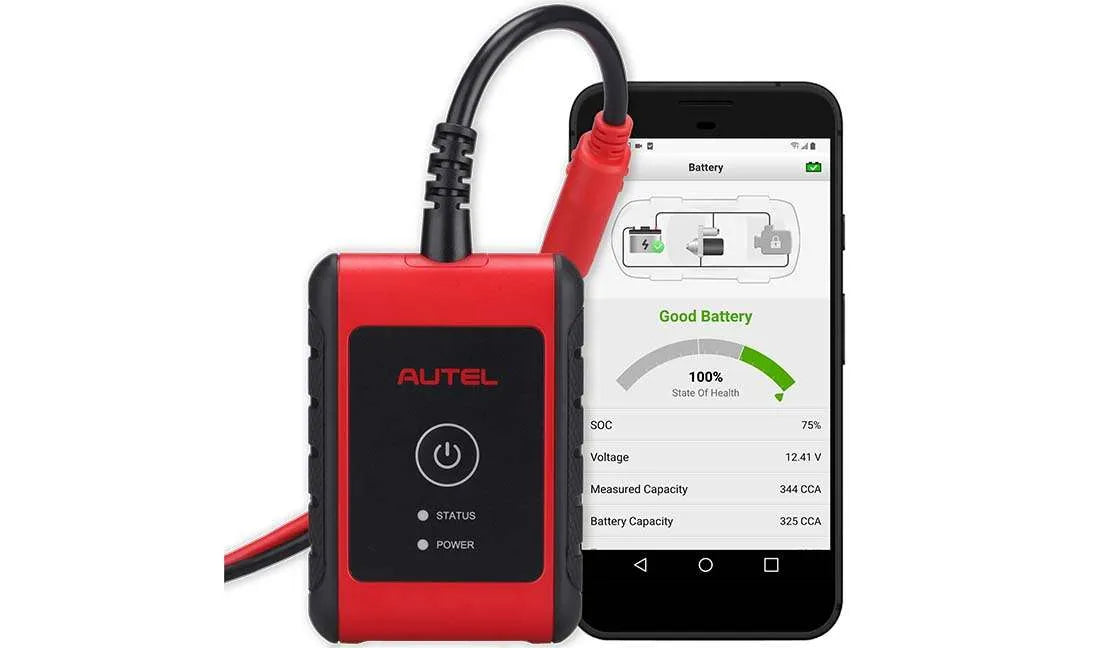

It allows technicians to monitor the health of the vehicle’s battery and electrical system. Using the free, user-friendly mobile app (available for iOS and Android), you can perform tests and view results conveniently on your smartphone or tablet.
Features

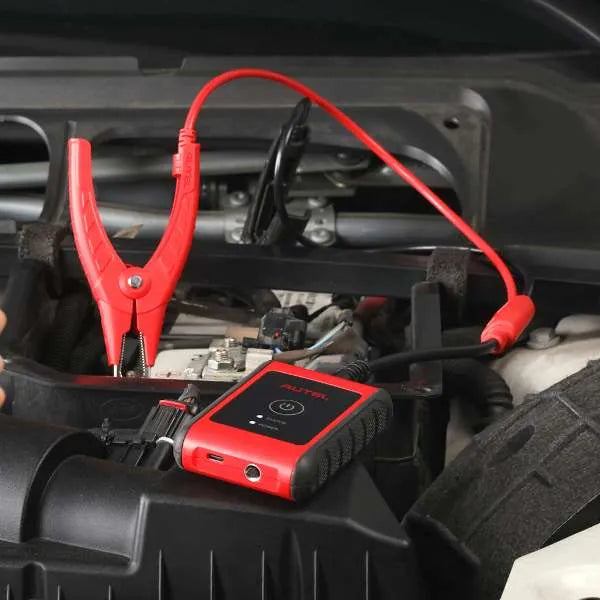

Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Tests 6- and 12-volt batteries with 100–2000 CCA
Tests 12- and 24-volt cranking and charging systems
Compatible with Flooded, AGM, AGM Spiral, EFB, and GEL batteries
Supports multiple standards: CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA
Specifications
Connectivity: USB 2.0, Type-C; Bluetooth V3.0 BR/EDR & V4.2 LE dual-mode
Input Voltage: 5 V DC
Working Current: <150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100–2000 A
Voltage Range: 6–36 V
Operating Temperature: -10° to 50°C (14° to 122°F)
Storage Temperature: -20° to 60°C (-4° to 140°F)
Dimensions (L x W x H): 107 × 75 × 26 mm (4.21″ × 2.95″ × 1.02″) (clamp cable not included)
