Autel BT608e Battery and Vehicle Diagnostic Tool

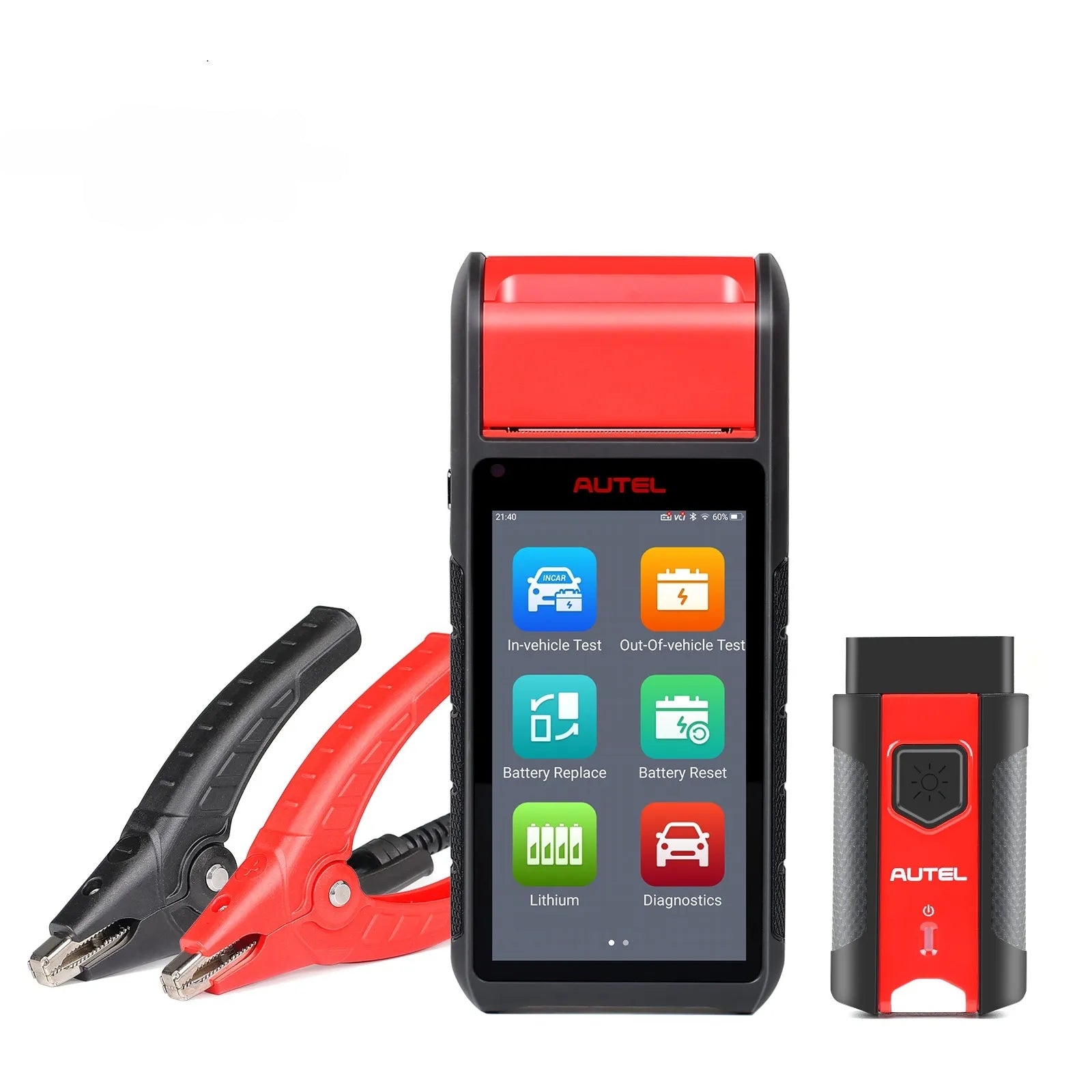

The Autel MaxiBAS BT608e is a comprehensive battery and electrical system diagnostic tool. It can test 6- and 12‑volt batteries up to 3000 CCA, as well as 12- and 24‑volt starting and charging systems. Compatible battery types include Flooded Lead-Acid, EFB, AGM, Spiral, and GEL.

Featuring Adaptive Conductance technology, the BT608e accurately identifies low-capacity batteries, reducing misdiagnosis. Its Android-based Wi-Fi touchscreen tablet displays battery health, supports automatic battery registration, and includes AutoVIN and ScanVIN for quick vehicle identification and battery specifications. Additional features include a shop manager application and a built-in thermal printer for on-the-spot reporting.

Contents
· MaxiBAS BT608 Android-based unit

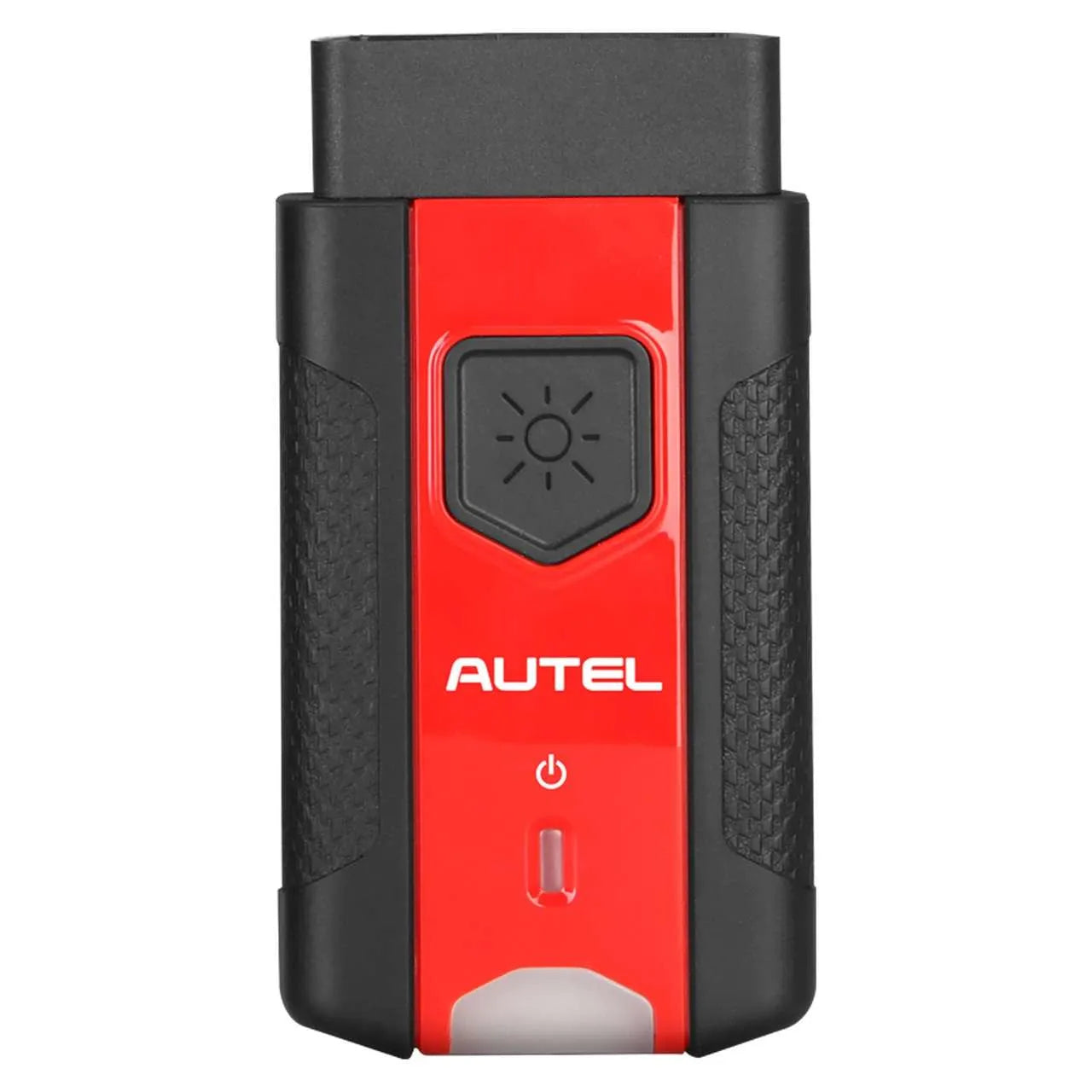

· MaxiVCI bluetooth V200 (DLC connector) with light
· Battery cable (approx 10-ft long) with Large Clamps (low profile) and temperature sensor
· 2 Battery Side Post Terminal Type S
· 2 Battery Top Post Terminal Type T (Group 31)
· 2 Rolls of paper
· Quick Reference Guide
· USB charging cable (BT608 battery is sealed, not replaceable)
· Hard carry case
· Free updates
· Quick Start Guide

Features

• OE Battery Data & Specifications: Provided in partnership with Battery Council International (BCI), including battery location and vehicle reset procedures. Vehicle battery info may list multiple OE-approved options; visual verification is recommended when inputting battery type into the BT608.
• Battery Testing: Supports 6V and 12V batteries (100–3000 CCA) and 12V/24V cranking and charging systems. Compatible with Flooded, AGM, AGM Spiral, EFB, and GEL batteries.
• Adaptive Conductance Technology: Detects battery capacity accurately, reducing misdiagnosis.

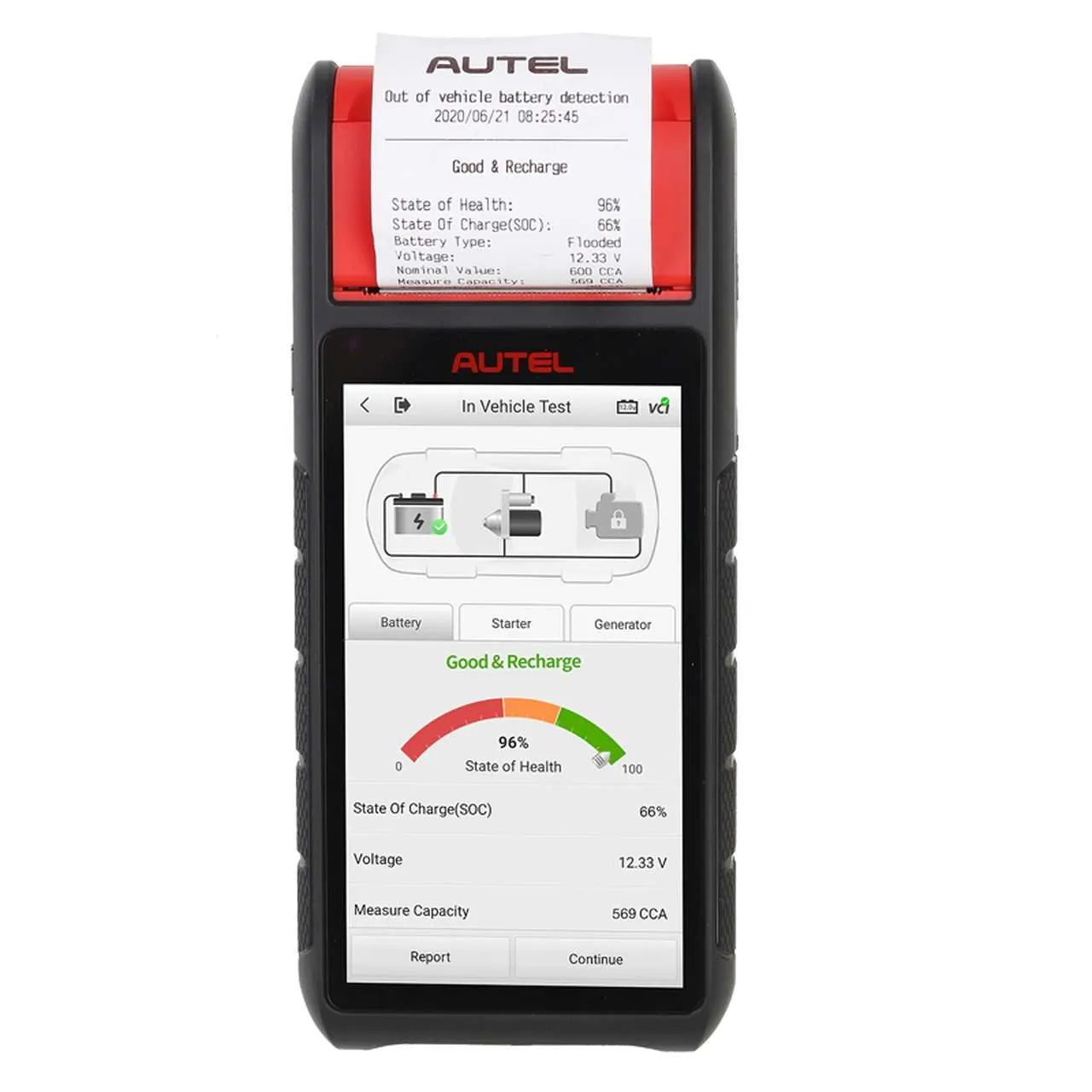

• Auto Battery Reset & Report Printing: Built-in thermal printer allows instant report printing; test reports can also be saved in Data Manager.

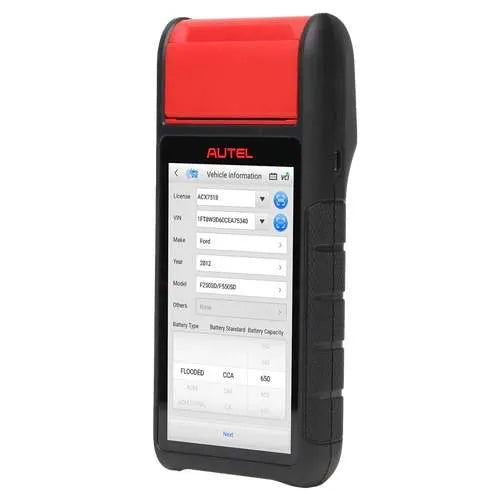

• Vehicle Identification: AutoScan and VinScan for quick access to battery specifications.
• Instruction Guides: Illustrations provided for battery positioning and testing.
• Adapters & Accessories: Includes side and top post adapters, Bluetooth VCI, clamp cables, four battery side post terminals (types S & T), and thermal paper roll. Optional DVOM leads and Amp Clamp available.
• Display & OS: 5.5-inch touchscreen, Android 9.0.
• Diagnostics: Read and erase error codes.
• Tablet Tool Hardware: Wireless tablet with 1.5 GHz Quad-Core processor, 32GB storage, 2GB RAM, and 6-hour battery life.
• Connectivity & Updates: Wi-Fi software updates.
• Printing Options: Reports can be printed via built-in printer (2 rolls included), Wi-Fi printing through Autel PC MaxiSuite, or emailed. Reports are customizable with title, shop info, and technician name.
