Universal ECU Bench Cable

Universal ECU Bench Cable

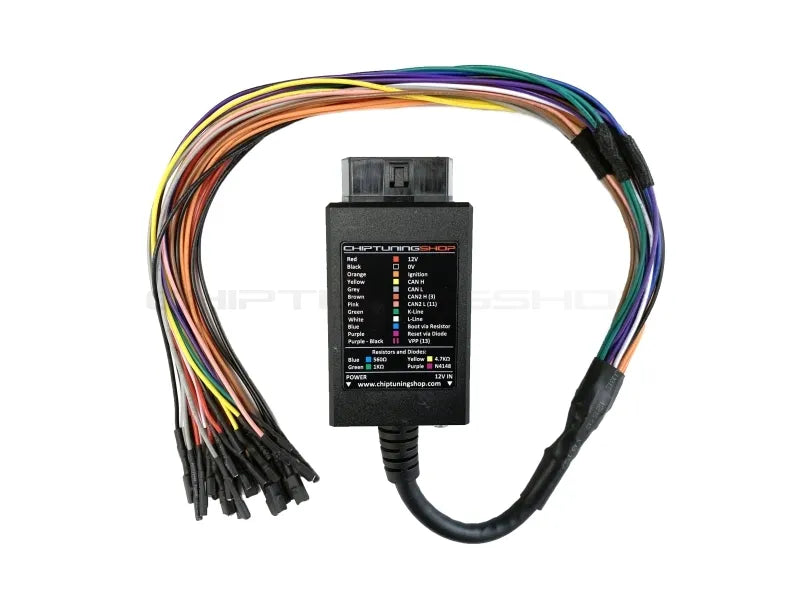

This universal pin-out cable provides an easy and reliable connection to a wide range of engine control units (ECUs). With expanded connections and pin types, it supports compatibility with most ECUs on the market. The cable includes an OBD2 female plug for seamless connection to any OBD flash tool, simplifying ECU diagnostics and programming.

Features

• Female OBD2 Port
• Power Connections: 12V and GND via crocodile clips or 2.1mm DC power jack (power supply not included)
• Power Confirmation: LED indicator
• ECU Connectors: 6 × 12V, 6 × GND
• Switched Ignition Connectors for ECU: 3
• Switched ECU Power: ON/OFF
• Switched CAN Bus Termination Resistors: 60Ω / 120Ω / OFF
• Switchable Ignition Pins: OFF / ON / K-Line for tools using K-Line reset function
• CAN Lines: 2 × CAN Low, 2 × CAN High
• CAN2 Lines (Ford/Volvo): 1 × CAN2 Low, 1 × CAN2 High
• K-Line: 2
• L-Line: 1
• VPP: 1 (OBD2 Pin 13)
• K-Line with Diode N4148: For reset function
• Bootpins: 560Ω / 1KΩ / 4.7KΩ
