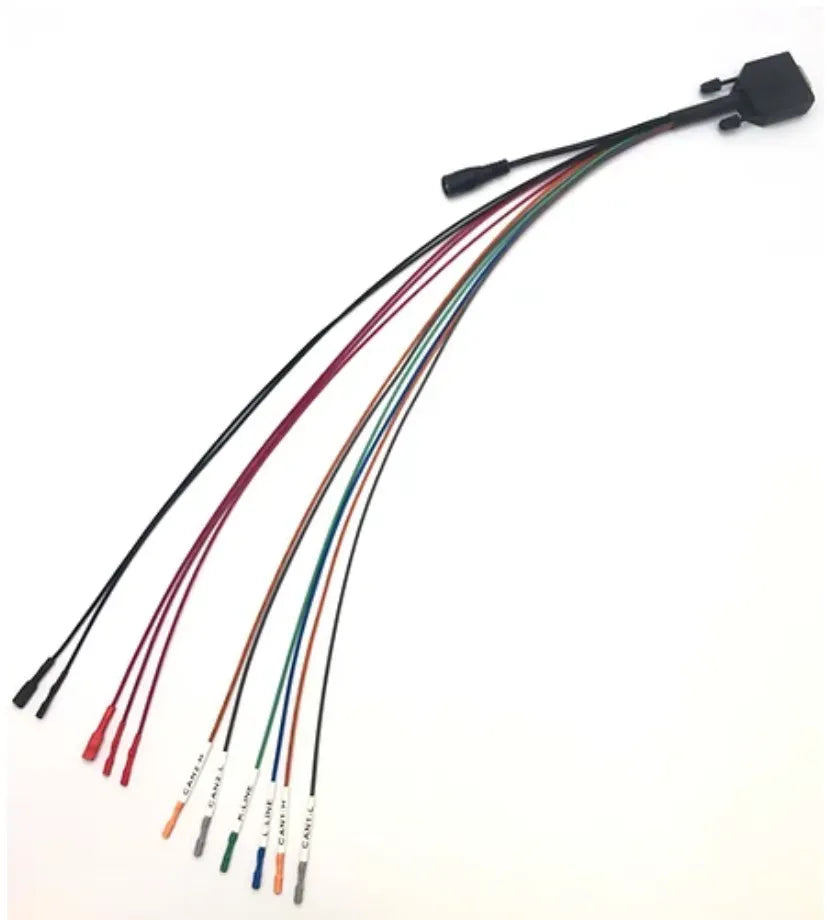

I/O Terminal Breakout Cable

/O Terminal Breakout Cable

This I/O Terminal Breakout Cable is designed for use with the I/O Terminal programming tool, providing easy and reliable connections to various ECUs via a D-Sub 9-way connector.

Key Features:

• DC Power Connection: 5.5 mm × 2.1 mm Female
• Cable Markers: Simplifies cable selection without a colour chart
• +12V and GND: Each with 2× large and 2× small connectors
• Total Length: Approx. 50 cm
• High-Quality Construction for durability and stable connections

Pinout Configuration:
1 – CAN1-H
2 – CAN1-L
3 – NC
4 – K-Line
5 – GND
6 – L-Line
7 – CAN2-H
8 – CAN2-L
9 – +12V
