- Extensive IMMO Coverage: Key programming for BMW, Volkswagen, Toyota, Honda, and General Motors
- 60‑Second Key Generation: Fast key generation (Autel Universal only)
- Transponder Operations: Read, write and clone transponders
- Chip Operations: Chip read, write, cloning and frequency detection
- Key Renewal: Supports key renewal for 36 vehicle makes
- Transponder Editing: Supports 20 transponder categories for editing
- Regional Certification: Supports certification requirements for various regions
- Dual‑Band Transmitter: High‑frequency transmitter supporting 315/434 MHz or 868/915 MHz per regional certification needs

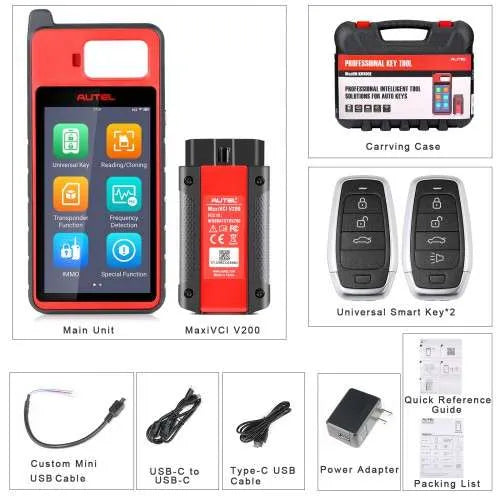

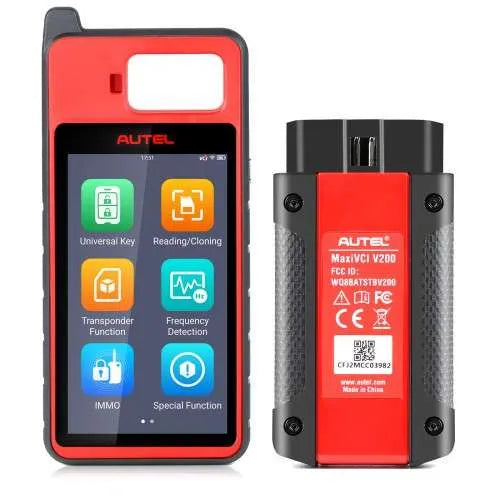

- Includes MaxiVCI VCI200: Enables key simulation and immediate key learning after generation — generate and programme with two button presses
- USB Data Transfer: Use supplied USB cable to transfer data to/from devices (e.g., IM608) and a laptop
- Includes Blank Keys: Supplied with two blank keys (one with Autel logo, one plain)
- Aftermarket Chip Support: Can generate certain aftermarket chips (e.g., Xhorse super chip); XT27 generation allowed once without external reset (requires Xhorse tool to reset for another generation)
- Portable IMMO Programming: Comparable IMMO performance to IM508/IM608 for many vehicles, more compact and convenient to pack/unpack
-
Vehicle Compatibility: Industry‑leading OBD IMMO learning coverage for over 90% of models; supports 8 key series and 37 models; covers the top 100 selling models in North America over the last 10 years
Specifications
- IMMO Application (requires OBDII data link): retrieves IMMO ECU data and performs IMMO functions (Key Learning, Remote Control Learning/Add, etc.)
- IMMO Status Scan: comprehensive scan of the IMMO ECU to locate fault systems and retrieve DTCs
- Control Unit: manually select and test IMMO control modules (e.g., Immobilizer, Remote System, Bosch MED9-Engine)
- Hot Function (guided): step‑by‑step guided tasks (e.g., Add Key guided flow)
- Vehicle IMMO Information: retrieves and displays VIN, PIN code and other IMMO ECU details
- 60‑Second Key Generation: supports 700+ model years (EU/US/Asia); generates sub‑machine in ~60s and one‑tap jumps to anti‑theft matching (streamlines workflow)
- Key Unlocking: renew a used smart key firmware via cable to unlock/program a new car key
- Toyota Smart Unlocking: place key in slot → tap Unlock → LED indicates successful unlock
- 2 pcs Autel iKey: supports 8 series / 37 key appearances; supports LF (315/433 MHz) and HF (868/915 MHz); conforms to IMMO/RKE/PKE acceptance indicators
- Supported IMMO Series (examples): ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB (note: ID4D remote-only; emergency 4D transponder may be required)
- Transponder Reading: reads chip type, IMMO type, transponder ID, lock status and code mode via transponder/key slot
- Transponder Cloning: detects transponder & vehicle info, decrypts code and directly clones/generates functional transponders (avoids old OBD workaround)
- Supported Cloning Types: 46 password calc, 42 clone, 11 clone, 12 clone, 13 clone, 33 clone, 8C clone
- Transponder Editing: read/edit transponder configuration and EEPROM data; confirms success with “writing succeeded” message
- Transponder Functions (summary): read chip/IMMO/type/ID/lock/code mode; generate functional transponder; edit transponder data; transponder simulation for emergency start; convert between Ford ID63 ↔ ID83
- Workflow Efficiency: cloning + one‑tap matching greatly reduces steps compared with traditional methods and speeds up key programming jobs
- Compatibility & Coverage: industry‑grade IMMO coverage and broad transponder support — choose procedures based on transponder ID and vehicle model for best results
