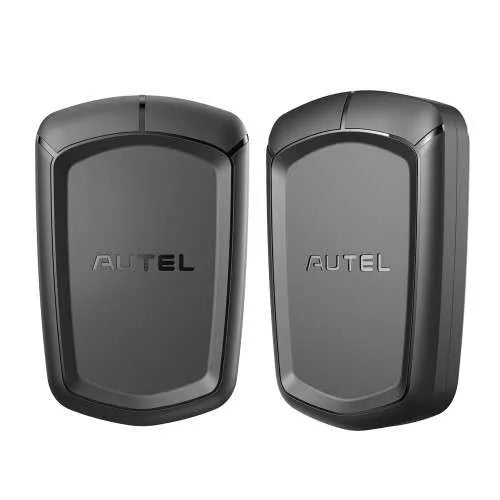

- Product: Smart Key Simulator
- Compatibility: Compatible with IM608, IM508, and MX808IM
- Usage Note: Compact unit that must be used with the XP400 (cannot be used with the XP200)
- Data Collection: 46, 4D data collection
- Password Calculation: 46 smart key password calculation
- Chip Simulation: 46 chip simulation (simulates 4D chips)
- Toyota 4D Simulation: Supports Toyota 4D (94/D4, 98) smart key simulation
- Toyota H Simulation: Supports Toyota H (88/A8, A9, 39) smart key simulation
- Ignition Coil: Collects data from the ignition coil and can identify ignition coil troubles
- Chip Decoding: Decodes vehicle key chip data (includes Hyundai 46 decoding)
- Key Simulation: Can simulate vehicle key chips for emergency start or programming (e.g., 4D chip simulation)
- IMMO Use: Enables Toyota/Lexus smart key all-key-lost procedures when used with a compatible Autel diagnostic tool
- Requirement: Must be used with an Autel diagnostic tool (e.g., IM608/IM508/MX808IM)
- Includes: APB112 Smart Key Simulator, USB cable, Quick Reference Guide
