Yanhua ACDP Module 27 — BMW MSV80 / MSD8X / MSV90 DME ISN Read/Write & Clone
The ACDP Module 27 is a professional-grade solution for BMW E/F chassis, enabling fast and safe read/write of ISN codes and ECU cloning for MSV80, MSD80, MSD81, MSD85, MSD87, and MSV90 DMEs. This module eliminates the need to open the DME shell, making bench operations simple, efficient, and reliable.
Key Features
- Supports BMW E/F chassis: MSV80, MSD80, MSD81, MSD85, MSD87, MSV90.
- Compatible DME types: Continental, SIEMENS.
- Bench-mode ISN read/write and clone — no need to open or program the DME manually.

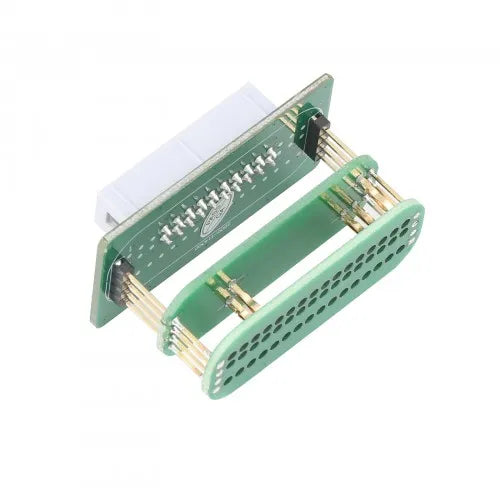

- Uses special interface boards instead of traditional wire plugs for safe, reliable, and efficient connections.
- Simple operation with shorted CAN resistor on OBP+ICP adapter ensures proper communication.
Connection Overview (Bench Mode)
-
Prepare: ACDP, OBP+ICP adapter, interface board, DME.
-
Connect the interface board to the DME interface.
-
Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”.
-
Connect all components to ACDP and proceed with read/write/clone.
Separate connection diagrams exist for each DME type (MSV80, MSD80/81, MSD85/87, MSV90) to ensure correct interface setup.

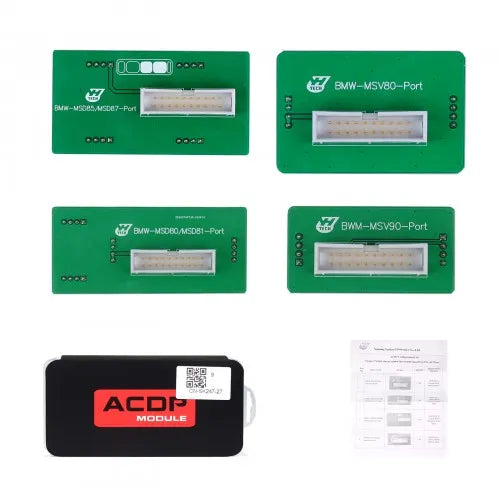

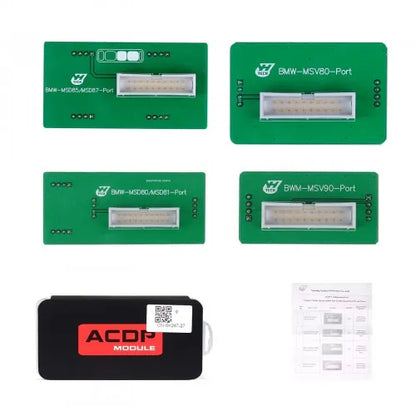

Package Contents
| Item | Adapter/Part | Quantity | Function |
|---|---|---|---|
| 1 | BMW-MSV80 Port Interface Board | 1 | Connect MSV80 DME |

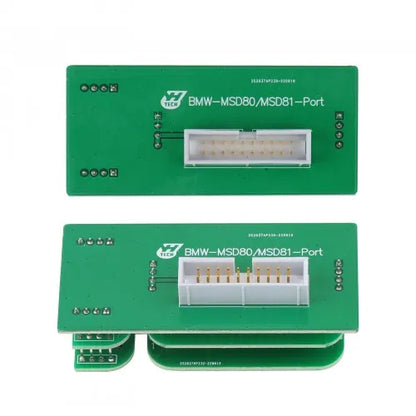

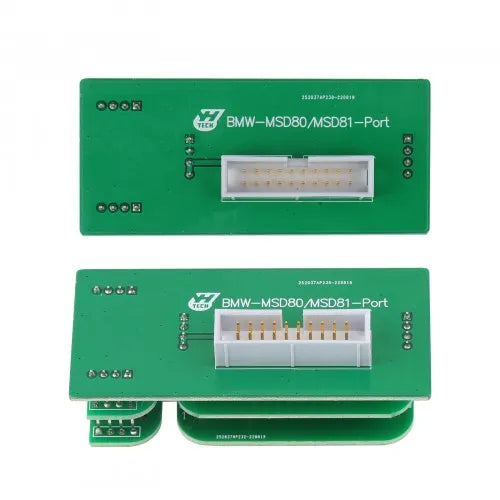

| 2 | BMW-MSD80/MSD81 Port Interface Board | 1 | Connect MSD80/MSD81 DME |
| 3 | BMW-MSD85/MSD87 Port Interface Board | 1 | Connect MSD85/MSD87 DME |
| 4 | BMW-MSV90 Port Interface Board | 1 | Connect MSV90 DME |
Note: This module requires the ACDP Master Basic Module and OBP+ICP adapter for bench operations. Licenses for specific functions may be required depending on your target DME.
